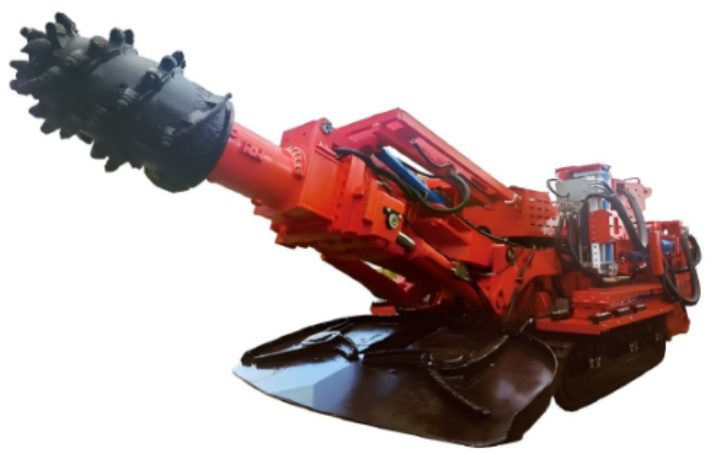

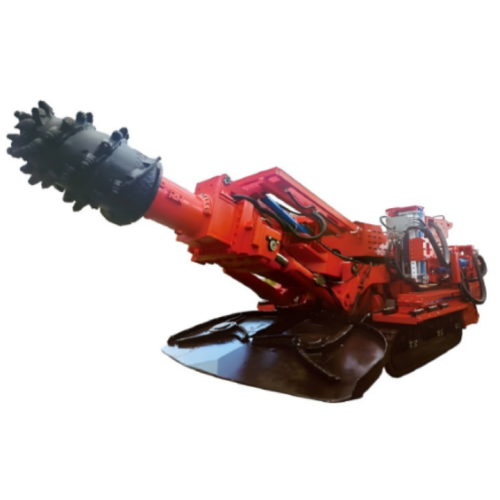

High Performance EBZ320M-2 Bolter Miner for Underground Mining – Integrated Roadheader With Integrated Roof Bolter for Enhanced Efficiency

Product Overview

Our High Performance EBZ320M 2 Bolter Miner (also known as Roadheader With Integrated Roof Bolter and High Speed Bolter Miner Unit) is a cutting-edge underground mining solution engineered for coal tunnels, semi-coal tunnels, and rock tunnels. This industrial-grade equipment integrates tunnel excavation and anchor bolt support into a single unit—eliminating the need for separate tunneling and bolting machinery—and delivers continuous cutting, loading, transportation, anchor hole drilling, resin pellet mixing, anchor bolt/cable installation, and nut tightening (meeting initial pre-tightening force requirements).

As a premium High Speed Bolter Miner Unit, the EBZ320M-2 is built to withstand harsh underground geological conditions, combining 320 kW high-power cutting performance with dual symmetric anchor drilling arms for unrivaled efficiency. It is the ideal choice for global mining and tunneling companies seeking to optimize productivity, safety, and operational costs in underground projects.

Technical Specifications

Cutting Power: 320 kW (industrial-grade for heavy-duty underground mining)
Anchor Rod Drilling Arms: 2 units, symmetrically arranged for balanced operation
Applicable Rock Hardness: F≤12 (uniaxial compressive strength ≤120 MPa, suitable for coal/semi-coal/soft-medium hard rock)
Cutting Drum Speed: 30-50 rpm (adjustable for geological variability)
Anchor Bolt Drilling Parameters: Diameter 28-42 mm, depth 1.8-3.0 m (customizable)
Travel Speed: 0-4.5 km/h (forward/reverse, low-speed stability for confined spaces)
Overall Dimensions (L×W×H): 12500×3200×1800 mm (compact design for narrow tunnels)
Operating Voltage: 1140 V/660 V (mine-specific explosion-proof power supply)
Total Installed Power: 560 kW
Dust Suppression Efficiency: ≥90% (high-pressure water mist system)

Product Features & Advantages

Integrated Design (Roadheader With Integrated Roof Bolter Core): Combines excavation and bolting functions to reduce equipment procurement costs by 30% and eliminate downtime between separate operations—boosting overall project efficiency by 40% vs. split-type equipment.
320 kW High-Power Cutting System: The High Performance EBZ320M 2 Bolter Miner handles soft to medium-hard rock formations with ease, featuring an adjustable cutting drum speed to optimize performance for diverse geological conditions.
Dual Symmetric Drilling Arms: Two synchronized arms cut anchor bolt installation time by 50% vs. single-arm models, with high-torque motors for fast, precise drilling even in hard rock.
Intelligent Safety & Monitoring: Real-time monitoring of cutting load, drill arm pressure, and temperature prevents equipment damage; explosion-proof (ATEX certified) and emergency stop systems ensure operator safety in explosive underground environments.
High-Efficiency Dust Suppression: Reduces airborne dust by 90%+ to comply with global occupational health standards, improving operator working conditions and reducing respiratory risks.
Durable & Low-Maintenance Build: Reinforced steel frame and wear-resistant cutting picks extend lifespan by 2-3 years; modular design enables quick part replacement, cutting maintenance downtime by 60%.
Ergonomic Operator Console: Intuitive controls, adjustable seating, and digital displays minimize fatigue during long shifts, improving operational accuracy and safety.

How to Use & Operate

Pre-Operation Inspection: Fully check the High Speed Bolter Miner Unit (power supply, hydraulic system, drill arms, cutting drum, safety systems, dust suppression water levels) to ensure no leaks, damage, or malfunctions.
Machine Positioning: Maneuver the bolter miner to the tunneling face, align the cutting drum with the target area, and secure the machine to prevent movement during operation.
Cutting Operation: Start the cutting motor (adjust speed per rock hardness), initiate continuous cutting/loading/transportation of excavated material, and monitor real-time cutting load to avoid overloading.
Anchor Bolt Support: After excavating a specified tunnel section, activate dual drill arms to drill anchor holes, mix resin pellets, install anchor bolts/cables, and tighten nuts to meet pre-tightening force requirements.
Continuous Monitoring: Alternate/synchronize cutting and bolting operations; regularly check equipment temperature, hydraulic pressure, and dust levels during runtime.
Post-Operation Shutdown: Stop operations in sequence (cutting motor → drill arms → conveyor → power supply), clean debris, refill dust suppression water, and report any issues to maintenance teams.
Routine Maintenance: Conduct daily lubrication/cleaning and weekly part inspection/bolt tightening to ensure long-term reliability.

Application Scenarios

Underground Coal Mines: Ideal for full-mechanized mining faces in coal/semi-coal tunnels—timely anchor bolt support reduces roof collapse risks while boosting tunneling efficiency.
Metal Ore Mines: Suitable for iron/copper/zinc mine tunneling (soft-medium hard rock); high-power cutting ensures fast excavation with stable tunnel support.
Road/Railway Tunnels: Compact design fits confined urban/mountain tunnel spaces, eliminating the need for multiple pieces of equipment in infrastructure projects.
Hydropower/Subway Tunnels: Adapts to complex geological conditions and meets strict safety standards for critical infrastructure construction.
Emergency Tunnel Reinforcement: Rapid bolting capabilities enable quick stabilization of unstable tunnel sections, minimizing safety risks.

Benefits for Global Customers

For Mining & Construction Companies (B2B Buyers)

30% lower capital expenditure (no need for separate roadheader/bolting equipment).
40% higher tunneling efficiency (simultaneous cutting/bolting reduces project timelines).
25% lower total cost of ownership (durable design + low maintenance).
60% reduction in workplace accidents (explosion-proof design + dust suppression).
High equipment utilization (adaptable to coal/metal/rock tunnel projects).

For Operators & On-Site Teams

Improved working conditions (low dust levels + ergonomic console).
50% shorter training time (intuitive controls + clear monitoring displays).
Enhanced safety (emergency stop + real-time fault alerts).
Reduced physical labor (automated cutting/bolting processes).

Certifications & Compliance

The EBZ320M-2 Bolter Miner complies with global mining safety/quality standards, ensuring seamless market access:

ATEX Certification (EU Explosion-Proof Standard for Underground Equipment)
ISO 9001:2015 (Quality Management System)
MA Certification (China Mine Product Safety Mark)
CE Marking (EU Health/Safety/Environmental Compliance)
ISO 14001:2015 (Environmental Management System)
OHSAS 18001:2007 (Occupational Health & Safety Management)

Customization Options

Flexible OEM/ODM customization for the High Speed Bolter Miner Unit to match project/regional requirements:

Drill Arm Customization: 1-3 arms (rotary/pneumatic); MOQ 5 units.
Power Adjustment: 280 kW-350 kW cutting power for specific rock hardness.
Control System Upgrade: Remote/automated operation for unmanned/semi-unmanned tunneling.
Dust Suppression Enhancement: High-pressure foam system for ultra-dusty environments.
Dimension Customization: Narrow tunnel adaptation (minimum width 2.8 m); MOQ 3 units.
Cold-Resistant Upgrade: -20°C to +40°C operating temperature for cold regions (Canada/Russia/Scandinavia).

Production Process & Quality Control

Raw Material Sourcing: High-grade Q355B steel/wear-resistant alloys (100% inspected for defects).
Component Manufacturing: CNC machining (±0.1 mm tolerance) of cutting drums/drill arms/hydraulic parts.
Welding & Assembly: Robotic welding for frame integrity; certified technicians assemble hydraulic/electrical components.
Explosion-Proof Testing: Rigorous ATEX/MA testing of electrical parts for underground safety.
Performance Testing: Full-load cutting/bolting tests on simulated rock formations to verify efficiency.
Final Inspection: 100% functional/safety/dimension checks (only passing units are packaged).
Packaging & Delivery: Waterproof/shockproof packaging for sea/land transportation.

Monthly capacity: 15 standard units / 8 custom units; lead time: 20-30 days (standard), 30-45 days (custom).

Customer Testimonials & Reviews

Australian Coal Mining Company: "The High Performance EBZ320M 2 Bolter Miner increased our tunneling progress by 45%. The integrated design cut maintenance costs by 20% and improved worker health via dust suppression."
German Tunnel Construction Firm: "The Roadheader With Integrated Roof Bolter fits perfectly in our 2.9 m narrow tunnels (custom dimension option). Delivery was on time, and after-sales support is exceptional."
South African Mining Distributor: "The High Speed Bolter Miner Unit is our top seller—<1% return rate. Customization options let us serve both coal and metal mine clients effectively."
Chinese Mining Supervisor: "The EBZ320M-2 is easy to operate, and dual drill arms halved our bolting time. Real-time monitoring prevents costly downtime."

Frequently Asked Questions (FAQ)

Q: What is the MOQ for EBZ320M-2?
A: 1 standard unit / 3 custom units; sample fee (refundable on 5+ unit orders) for testing.
Q: What is the warranty period?
A: 12 months (main frame/core components), 6 months (wearable parts); on-site maintenance in major mining regions.
Q: Can it comply with US MSHA standards?
A: Yes—customizable to meet MSHA requirements (additional safety features/documentation).
Q: How long is operator training?
A: 3-5 days (basic), 7-10 days (advanced); training materials in English/Spanish/Russian/Chinese.
Q: Are spare parts available globally?
A: Yes—common parts (picks/seals/bits) in warehouses (China/Australia/South Africa/Germany) for 2-5 day delivery.
Q: Is it suitable for cold environments?
A: Yes—cold-resistant upgrade (heated hydraulics/insulated parts) for -20°C operation.
