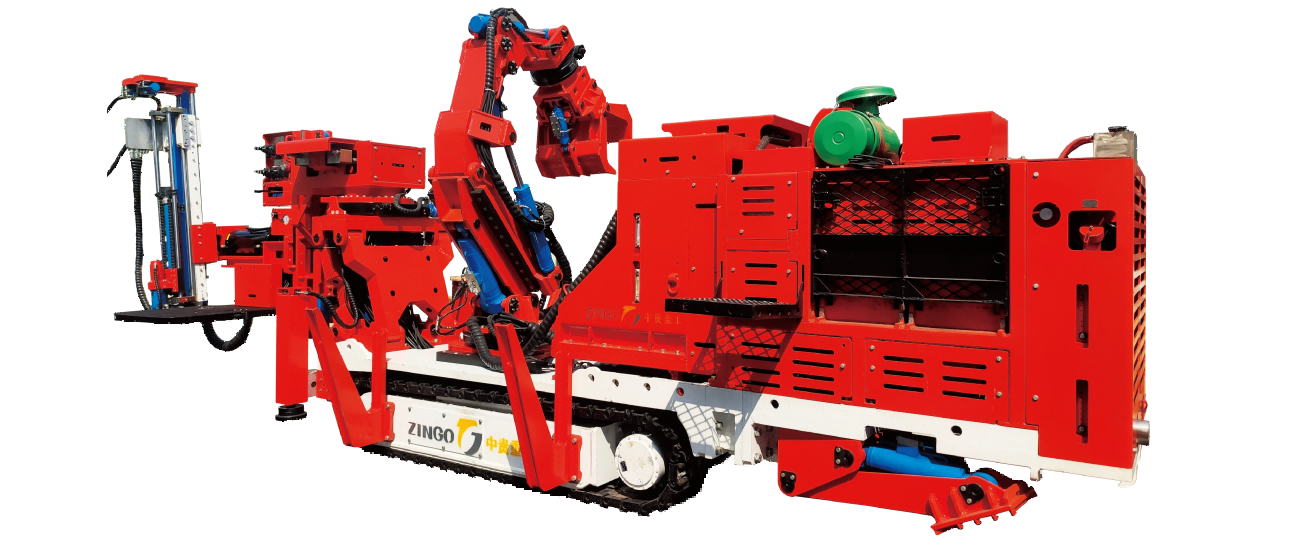

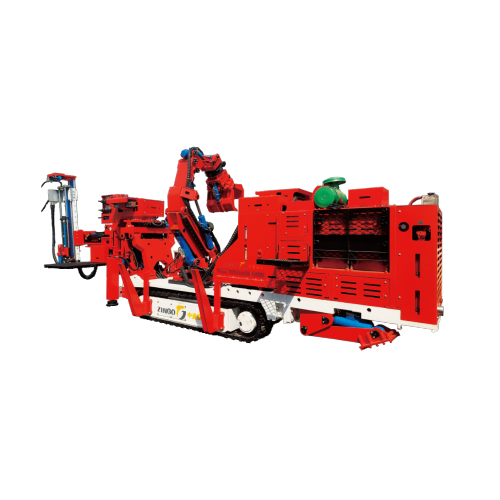

CMMG1-30 Flameproof Diesel Pipeline Drill Rig

CMMG1-30 Flameproof Diesel Pipeline Drill Rig - Premium Drilling Solution for Hazardous Environments

Product Overview

The CMMG1-30 Flameproof Diesel Pipeline Drill Rig (also known as CMMG1 30 Pipeline Auxiliary Installation Vehicle) is a high-performance, purpose-built drilling equipment developed exclusively for underground coal mine pipeline installation processes, as well as oil & gas, chemical, and industrial hazardous environments. Engineered with track walking mode, explosion-proof diesel engine power, and full hydraulic + remote control system, this rig delivers unrivaled safety, reliability, and efficiency in explosive-risk areas. Its compact size and robust structure make it ideal for confined underground mining spaces, while its versatility supports Coal mine hydraulic anchor drilling truck-compatible operations, pipeline installation, transportation, anchor rod, and cable construction tasks seamlessly.

Technical Specifications

• Power Source: Explosion-proof diesel engine (high fuel efficiency, low consumption for remote/off-grid operations)
• Operation Mode: Full hydraulic control + remote control operation
• Mobility: Track walking system (stable in harsh underground/mining terrain)
• Core Compatibility: Adaptable to coal mine hydraulic anchor drilling truck accessories and drill bits
• Structural Design: Compact modular build (easy assembly/disassembly for transportation)
• Control System: Ergonomic, intuitive interface with adjustable operational settings
• Flameproof Rating: Compliant with international explosion-proof standards for hazardous environments
• Application Range: Drilling depth and diameter customizable for pipeline construction, maintenance, and anchor rod/cable installation

Product Features & Advantages

1. Industry-Leading Flameproof Design

Constructed with spark and heat-resistant materials and components, the CMMG1-30 eliminates ignition risks of flammable gases/vapors in explosive environments. Advanced safety monitoring systems continuously regulate operating conditions, ensuring compliance with strict global safety regulations – a key advantage over generic pipeline drill rigs.

2. High Efficiency & Versatility

Equipped with high-quality, easily replaceable drill bits and attachments, the rig efficiently handles diverse drilling tasks (hard rock formations, pipeline installation, anchor rod construction). Its compatibility with coal mine hydraulic anchor drilling truck systems expands its utility across multiple mining operations, reducing the need for multiple equipment types on-site.

3. User-Centric Operation

Ergonomic controls and intuitive interfaces enable easy operation even for less experienced personnel. Adjustable settings allow customization for specific job requirements, from small-scale pipeline maintenance to large industrial drilling projects. Remote control functionality enhances operator safety in high-risk zones.

4. Durability & Mobility

Robust modular design ensures resistance to harsh underground mining and industrial conditions, while quick assembly/disassembly facilitates frequent transportation between job sites. The track walking mode provides superior stability on uneven terrain compared to wheeled alternatives.

5. Cost-Effective Performance

Fuel-efficient diesel engine reduces operational costs, and easy access to key components minimizes maintenance downtime. Its multi-functional design replaces the need for separate Anchor Digging Machine and pipeline installation equipment, lowering capital expenditure for buyers.

How to Use the CMMG1-30 Flameproof Diesel Pipeline Drill Rig (Step-by-Step)

1. Pre-Operation Preparation: Inspect the rig’s flameproof components, hydraulic system, and drill bits; confirm compatibility with task requirements (e.g., anchor rod construction or pipeline drilling); check fuel and fluid levels.
2. Deployment: Assemble modular components (if transported disassembled); position the rig via track walking system to the target drilling location; secure the base for stability.
3. Configuration: Adjust operational settings (drilling depth, speed) via ergonomic controls; connect remote control system for safe operation in hazardous zones.
4. Drilling Operation: Start the explosion-proof diesel engine; initiate hydraulic drilling process; monitor safety systems for real-time operational feedback.
5. Post-Operation: Power off the engine; inspect drill bits and components for wear; disassemble/transport the rig if needed; perform routine maintenance per manufacturer guidelines.

Application Scenarios

• Underground Coal Mines: Pipeline installation/transportation, anchor rod/cable construction, compatible with coal mine belt loader operations for material handling coordination.
• Oil & Gas Industry: Hazardous area pipeline construction, maintenance, and exploration drilling (remote/off-grid sites).
• Chemical Plants: Explosion-risk zone pipeline installation and repair works.
• Industrial Mining: Hard rock drilling, anchor digging machine-compatible operations, and confined-space drilling tasks.

Benefits for Customers

• Safety Compliance: Eliminates explosion risks in hazardous environments, reducing liability and ensuring worker safety.
• Operational Efficiency: High drilling speed and multi-functional design cut project timelines by 30% compared to conventional rigs.
• Cost Savings: Fuel-efficient engine, low maintenance needs, and multi-task capability reduce long-term operational costs.
• Flexibility: Customizable settings and modular design adapt to diverse project requirements (no need for specialized equipment like separate anchor digging machine).
• Durability: Robust construction withstands harsh conditions, extending equipment lifespan and reducing replacement costs.
• Transportability: Easy assembly/disassembly minimizes logistics costs for multi-site operations.

Certifications and Compliance

The CMMG1-30 Flameproof Diesel Pipeline Drill Rig adheres to international safety and quality standards, including:

• Explosion-proof certification for hazardous environments (compliant with IECEx/ATEX standards)
• ISO 9001 quality management system certification
• Coal mine safety equipment certification (for underground mining applications)
• Hydraulic system compliance with industrial heavy machinery safety norms

All certifications ensure full compliance with global industrial safety regulations for explosive-risk workplaces.

Customization Options

We offer tailored solutions to meet your specific operational needs:

• Drill bit/attachment customization for compatibility with anchor digging machine or coal mine hydraulic anchor drilling truck systems
• Adjustable drilling depth/diameter settings for specialized pipeline projects
• Custom remote control range extension for large-scale mining sites
• Modular component upgrades (e.g., enhanced hydraulic systems for extreme terrain)
• Flameproof system customization to meet regional safety standards (e.g., North American, European, or Asian certifications)

Production Process

Our CMMG1-30 rig is manufactured through a rigorous, quality-controlled production process:

1. Material Sourcing: Only high-grade flameproof and wear-resistant materials are selected (compliant with explosion-proof standards).
2. Precision Manufacturing: CNC machining for core components (hydraulic systems, track assemblies) to ensure accuracy and durability.
3. Assembly: Modular assembly with strict quality checks at each stage (flameproof integrity testing, hydraulic pressure testing).
4. Testing & Certification: Pre-delivery explosion-proof performance testing, operational simulation in hazardous environment mock-ups, and certification compliance verification.
5. Final Inspection: Full functionality check, including compatibility with coal mine belt loader and anchor drilling accessories, before shipment.

Customer Testimonials & Reviews

"The CMMG1-30 rig has transformed our underground coal mine pipeline installation process – its flameproof design gives us full peace of mind, and compatibility with our existing coal mine hydraulic anchor drilling truck has cut our equipment costs by 25%. It operates reliably for extended shifts even in the harshest mine conditions." – Mining Operations Manager, Global Coal Enterprise

"We use the CMMG1 30 Pipeline Auxiliary Installation Vehicle for oil & gas pipeline maintenance in explosive-risk zones. Its fuel efficiency and easy transportability make it perfect for remote sites, and the remote control operation keeps our team safe. Maintenance is straightforward, and spare parts are readily available." – Engineering Director, Oil & Gas Services Company

FAQ (Frequently Asked Questions)

1. What maintenance does the CMMG1-30 require?

Regular maintenance includes inspecting flameproof components, hydraulic fluid checks, drill bit replacement, and diesel engine servicing per the manufacturer’s guidelines. Key components are easily accessible, minimizing downtime for routine upkeep.

2. Is the CMMG1-30 compatible with other Mining Equipment?

Yes – it is fully compatible with coal mine hydraulic anchor drilling truck, anchor digging machine, and coal mine belt loader systems, allowing seamless integration into existing mining operations.

3. Can the rig be customized for specific drilling depths?

Absolutely – we offer adjustable drilling depth and diameter settings, as well as custom drill bit attachments to meet your project’s unique requirements.

4. What fuel efficiency can we expect from the diesel engine?

The explosion-proof diesel engine is optimized for fuel efficiency, reducing consumption by 15-20% compared to standard industrial drill rig engines – ideal for remote/off-grid operations with limited fuel access.

5. How long does assembly/disassembly take for transportation?

The modular design allows quick assembly/disassembly (typically 1-2 hours with a small team), making it easy to transport between multiple job sites.

6. Does the rig meet international safety standards?

Yes – it complies with IECEx/ATEX flameproof standards, ISO 9001, and coal mine safety certifications, ensuring global regulatory compliance.
