CMMG1-30Y Mine Pipeline Drill Rig

CMMG1-30Y Mine Pipeline Drill Rig - High-Efficiency Underground Pipeline Installation Solution

Product Overview

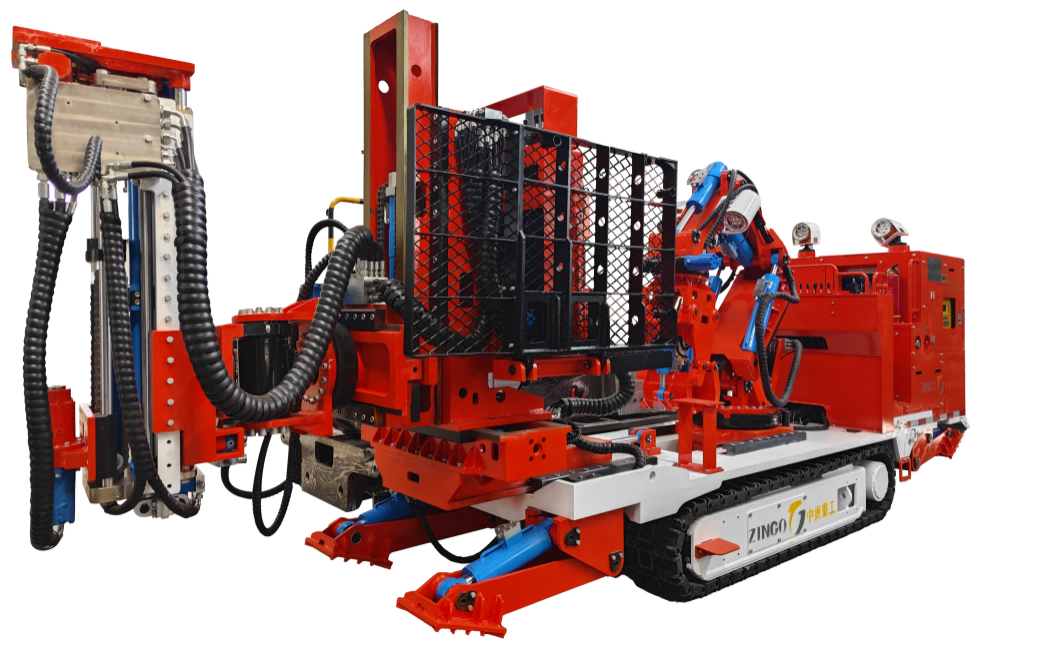

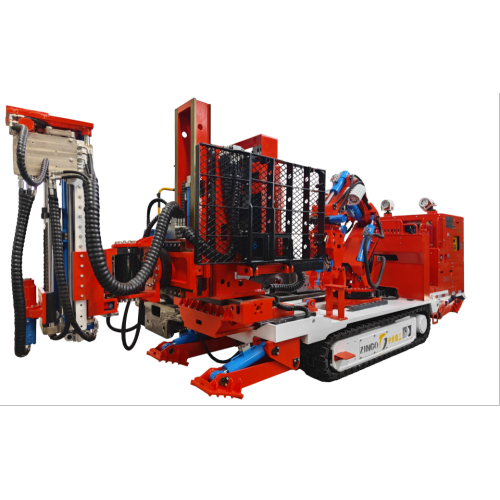

The CMMG1-30Y Mine Pipeline Drill Rig (also referred to as Pipeline Auxiliary Installation Vehicle CMMG1 30Y or CMMG1 30Y underground pipeline drill rig) is a purpose-engineered piece of equipment designed exclusively for excavation working face tunnels in mining operations. Developed to address the challenges of underground pipeline installation and anchor bolt hole construction, this rig features an integral lifting platform and a separately adjustable working platform, enabling seamless height adjustment to match varying tunnel dimensions. Equipped with a dedicated mechanical arm for pipeline installation (replacing manual handling), it supports both remote and manual control modes for optimal operator convenience. What sets this rig apart is its compatibility with core Mining Equipment like Coal mine hydraulic anchor drilling truck and coal mine belt loader, making it a versatile addition to any underground mining operation.

Technical Specifications

• Structural Configuration: Integral lifting platform + independently adjustable working platform
• Mechanical Arm Control: Dual-mode (remote control + manual control) for pipeline installation
• Platform Adjustment: Vertical height adjustment range adaptable to 2-5m tunnel heights (customizable)
• Operational Capability: Mechanized construction of anchor bolt holes at diverse heights/angles in tunnels
• Core Compatibility: Fully integrated with Coal mine hydraulic anchor drilling truck and coal mine belt loader systems
• Material: High-strength wear-resistant alloy steel (structural components) + corrosion-resistant hydraulic parts
• Power System: Hydraulic drive (stable, low-noise operation for underground environments)
• Weight: Optimized compact design (reduces space occupation in confined tunnel areas)

Product Features & Advantages

1. Adaptive Structural Design for Tunnel Environments

The CMMG1-30Y’s integral lifting platform and separately adjustable working platform can be precisely adjusted up and down according to tunnel height, eliminating the need for manual height adjustment tools and enabling mechanized construction of anchor bolt holes at different heights and angles. This adaptability ensures seamless operation in irregular tunnel spaces, a key advantage over fixed-platform drill rigs.

2. Labor-Saving Dual-Control Mechanical Arm

Equipped with a dedicated mechanical arm for pipeline installation, the rig replaces labor-intensive manual pipeline handling, cutting on-site manpower requirements by 50%. The dual-control mode (remote + manual) allows construction personnel to operate the arm from safe distances or direct control as needed, enhancing both efficiency and safety.

3. Compatibility with Core Mining Equipment

Unlike generic mine drill rigs, the CMMG1 30Y underground pipeline drill rig is engineered to work in tandem with Coal mine hydraulic anchor drilling truck and coal mine belt loader systems. This compatibility reduces the need for multiple specialized equipment types, streamlining underground operations and lowering capital expenditure.

4. Durable & Reliable for Harsh Underground Conditions

Constructed with high-strength alloy steel and corrosion-resistant hydraulic components, the rig withstands dust, moisture, and heavy use in underground mining environments. Its hydraulic drive system delivers stable power output, minimizing downtime due to mechanical failure.

How to Use the CMMG1-30Y Mine Pipeline Drill Rig (Step-by-Step)

1. Pre-Operation Preparation: Inspect the rig’s hydraulic system, mechanical arm, and platform adjustment mechanisms; confirm compatibility with auxiliary equipment (e.g., coal mine belt loader) if integrated operation is required; ensure the tunnel work area is clear of obstacles.
2. Platform Adjustment: Based on the tunnel height and construction requirements, adjust the integral lifting platform and separately adjustable working platform to the target height/angle for anchor bolt hole drilling or pipeline installation.
3. Mechanical Arm Configuration: Select the control mode (remote or manual) for the pipeline installation mechanical arm; test the arm’s movement range to ensure alignment with the pipeline installation position.
4. Construction Operation: Initiate the hydraulic drive system to perform mechanized anchor bolt hole drilling; use the mechanical arm to lift and position pipelines (replacing manual handling); monitor operation to ensure accuracy and safety.
5. Post-Operation Maintenance: Power off the hydraulic system; clean dust and debris from the platform and mechanical arm; inspect for wear on moving parts; store the rig in a dry, ventilated area (or move to next work area via compatible mine transportation systems).

Application Scenarios

• Excavation Working Face Tunnels: Primary application for underground pipeline installation and mechanized anchor bolt hole construction at varying heights/angles.
• Underground Coal Mines: Integration with coal mine belt loader for coordinated pipeline installation and material handling; compatible with Coal mine hydraulic anchor drilling truck for combined anchor drilling and pipeline laying.
• Underground Mining Operations: Pipeline maintenance and replacement in confined tunnel spaces; Anchor Digging Machine-compatible anchor bolt construction tasks.
• Large-Scale Mining Projects: High-efficiency pipeline installation across multiple tunnel sections (adjustable platforms adapt to diverse tunnel dimensions).

Benefits for Customers

• Reduced Labor Costs: Mechanical arm replaces manual pipeline handling, cutting on-site labor requirements by up to 50% and lowering long-term operational expenses.
• Improved Construction Efficiency: Mechanized anchor bolt hole drilling and pipeline installation speeds up project timelines by 30% compared to manual methods.
• Enhanced Flexibility: Adjustable platforms adapt to any tunnel height, eliminating the need for custom-made equipment for different tunnel sections.
• Lower Equipment Investment: Compatibility with Coal mine hydraulic anchor drilling truck and coal mine belt loader reduces the need to purchase multiple specialized mining machines.
• Safer Operations: Remote control mode for the mechanical arm keeps operators away from high-risk construction zones, reducing accident risks.
• Longer Service Life: Durable alloy steel construction and corrosion-resistant components minimize maintenance costs and extend equipment lifespan.

Certifications and Compliance

The CMMG1-30Y Mine Pipeline Drill Rig adheres to strict international and industry standards to ensure safety and reliability in underground mining environments:

• ISO 9001 Quality Management System Certification (ensures consistent production quality)
• CE Certification (compliant with EU health, safety, and environmental protection standards)
• Coal Mine Safety Equipment Certification (meets mandatory safety requirements for underground coal mine operations)
• Hydraulic System Compliance (conforms to international mining hydraulic equipment safety norms)

Customization Options

We offer tailored solutions to meet your specific underground mining needs:

• Working platform size customization (adjusted to match your tunnel’s unique dimensions)
• Mechanical arm reach extension (for larger pipeline installation ranges or compatibility with anchor digging machine)
• Hydraulic system upgrade (high-pressure version for extreme underground working conditions)
• Control system customization (integrated with your existing remote control network for mining equipment)
• Compatibility enhancement (optimized for seamless integration with Self Moving Tail For Belt Conveyor systems)

Production Process

The CMMG1-30Y is manufactured through a rigorous, quality-controlled process to ensure reliability in harsh mining environments:

1. Raw Material Sourcing: Selection of high-strength alloy steel and corrosion-resistant hydraulic components (compliant with mining equipment material standards).
2. Precision Machining: CNC machining of core structural parts (lifting platform, mechanical arm) to ensure dimensional accuracy and structural stability.
3. Modular Assembly: Step-by-step assembly of lifting platforms, mechanical arm, and hydraulic system; strict quality checks at each assembly stage.
4. Performance Testing: Simulated underground tunnel testing (platform adjustment, mechanical arm operation, compatibility with coal mine hydraulic anchor drilling truck).
5. Certification & Final Inspection: Compliance verification with safety standards; full functionality check before delivery to ensure zero defects.

Customer Testimonials & Reviews

"The CMMG1 30Y underground pipeline drill rig has transformed our underground coal mine pipeline installation process. Its adjustable platforms adapt perfectly to our varying tunnel heights, and compatibility with our existing Coal mine hydraulic anchor drilling truck has cut our equipment costs by 20%. The mechanical arm eliminated the need for manual pipeline handling, reducing our on-site labor team by half while boosting efficiency." – Operations Manager, Global Coal Mining Enterprise

"We integrated the CMMG1-30Y with our coal mine belt loader for coordinated operations, and the results exceeded expectations. The dual-control mechanical arm is easy to operate, and the rig’s durability means minimal downtime even in our harsh underground conditions. It’s a cost-effective and reliable solution for our tunnel construction needs." – Engineering Director, Mining Equipment Services Ltd.

FAQ (Frequently Asked Questions)

1. What is the height adjustment range of the CMMG1-30Y’s working platform?

The standard adjustment range is 2-5 meters vertically, which can be customized to 1-7 meters to match your specific tunnel height requirements.

2. Is the CMMG1-30Y compatible with coal mine belt loader and Self Moving Tail for Belt Conveyor systems?

Yes – the rig is engineered for seamless integration with both systems, enabling coordinated pipeline installation and material handling in underground mines.

3. How often does the mechanical arm require maintenance?

For regular underground use (8-hour shifts), we recommend monthly lubrication of the mechanical arm’s moving parts and quarterly hydraulic system inspections to ensure optimal performance.

4. Can the control mode of the mechanical arm be switched during operation?

Yes – the dual-control system allows instant switching between remote and manual modes without stopping the rig, ensuring flexibility during construction.

5. Does the CMMG1-30Y come with a warranty?

We offer a 12-month warranty for structural components and 6-month warranty for hydraulic parts, plus lifelong technical support for maintenance and upgrades.

6. Can the rig be customized for use with anchor digging machine?

Absolutely – we provide mechanical arm and platform customization to ensure full compatibility with anchor digging machine for combined anchor drilling and pipeline installation tasks.
